Why Does FHD Win HMI Display Resolution for Data-Heavy Apps?

FHD (1920x1080) wins HMI display resolution for data-heavy apps by delivering ~2x higher pixel density LCD (e.g., 218 PPI on 10.1" vs. 110 PPI for WVGA 800x480), ensuring crisp legibility of small text and complex vector graphics. Use the LCD PPI calculator formula: PPI = √(width² + height²) / diagonal inches. FHD excels in industrial/automotive HMIs, reducing errors in rugged environments.

Check: Why Are Industrial Manufacturers Switching from WVGA to FHD Displays?

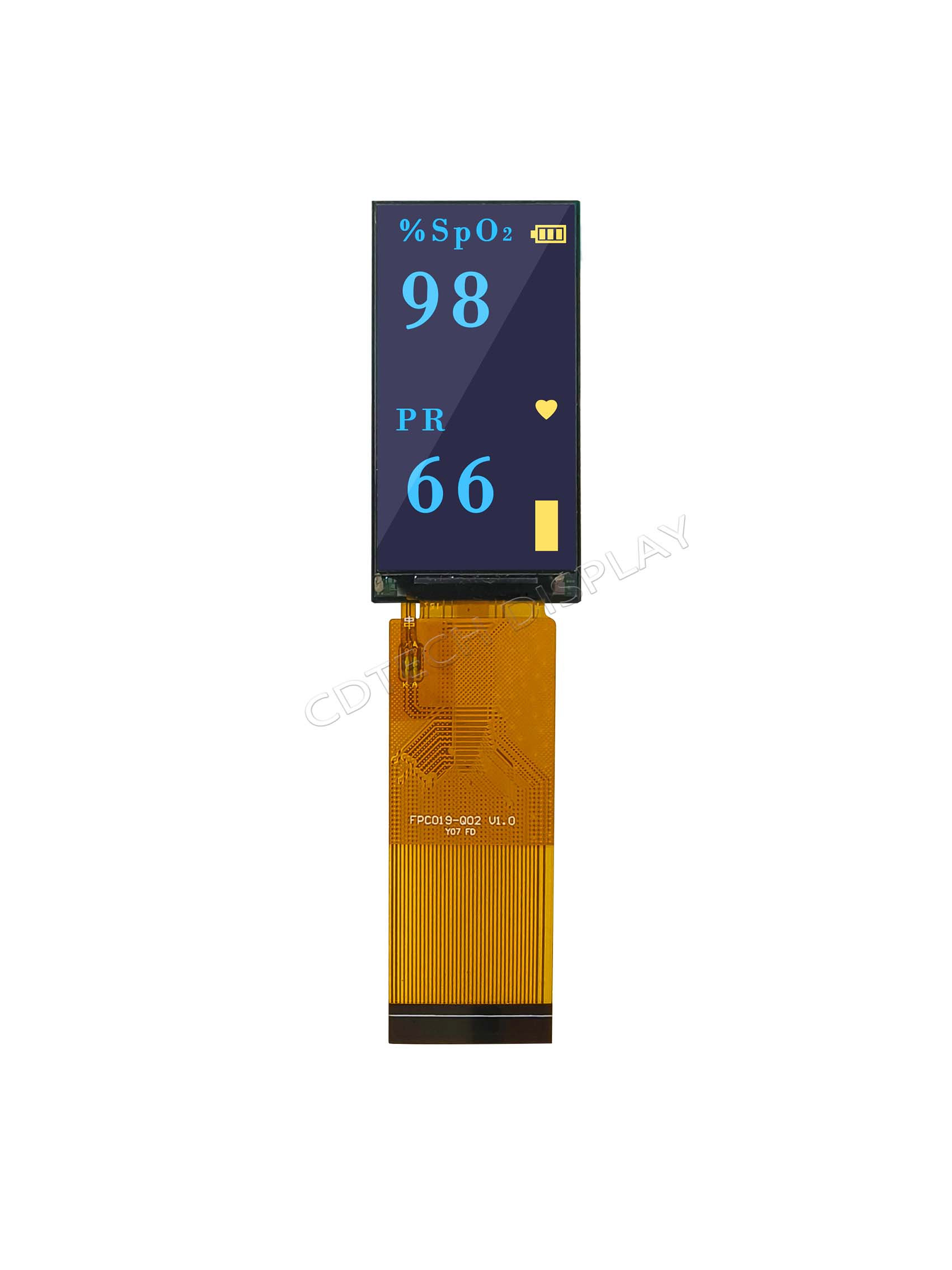

What Is Pixel Density (PPI) in LCD Displays?

Pixel density (PPI) in LCD displays measures pixels packed per inch, crucial for industrial LCD PPI and automotive display pixel density in HMIs. The PPI calculation formula is PPI = √(horizontal pixels² + vertical pixels²) / screen diagonal in inches. For a 10.1" screen, high PPI prevents pixelation in vector graphics on TFT LCDs for data-heavy HMIs.

How Does the LCD PPI Calculator Work for HMI Screens?

The LCD PPI calculator works by inputting resolution like FHD 1920x1080 and size like 10.1" to compute PPI = √(1920² + 1080²) / 10.1 ≈ 218. Compare to WVGA 800x480 on 10.1": ≈110 PPI, yielding 20-30% better small-text sharpness with FHD. Engineers can use this for evaluating high PPI TFT LCD options in HMIs.

FHD boosts pixel density LCD for superior HMI clarity.

Why Is FHD vs WVGA a Key Debate for HMI Display Resolution?

FHD (1920x1080) vs WVGA (800x480) debates center on PPI differences for HMI display resolution. WVGA blurs small text/icons in data-heavy dashboards, while FHD renders clean vectors. CDTech's high-brightness panels like 10.1" 1280x800 equivalents support real-world HMI upgrades in industrial and automotive applications.

Check: FHD Display

Which Resolution Offers Better Legibility for Small Text in HMIs?

FHD offers better legibility for small text in HMIs, maintaining readability at 6-8pt fonts without aliasing, unlike WVGA. For complex vector graphics, FHD handles multi-layer charts/maps smoothly, ideal for data-heavy HMI resolution. This reduces errors in medical and automotive HMIs via higher industrial LCD PPI.

CDTech Expert Views

"With 13+ years of experience since 2011, our 10,000㎡ factory and 3,500㎡ dust-free workshop enable custom high PPI TFT LCDs for demanding HMIs. Quad certifications including ISO9001, ISO14001, ISO13485, and IATF16949, plus our 'zero-defect' policy, ensure reliable FHD solutions. In-house OCA optical bonding enhances sunlight readability, as in our 12.3" 1920x720 vehicle panels at 950 nits and -30°C to +80°C operation."

— CDTech R&D Team

What Makes FHD Ideal for Industrial and Automotive HMIs?

FHD is ideal for industrial and automotive HMIs due to high HMI display resolution needs in data-heavy apps, paired with wide-temp rugged TFT LCDs. CDTech's custom solutions like 10.1" S101HWX53EP-FC47-AG with 1280x800, 850 nits, OCA bonding, and -30°C~+80°C outperform WVGA in instrumentation and smart home uses. FHD's PPI edge justifies the premium for performance.

How Can Custom High-PPI TFT LCDs Solve HMI Challenges?

Custom high-PPI TFT LCDs solve HMI challenges through CDTech's in-house OCA/AG treatments for FHD HMI displays, like 12.3" S123BWU09NP-FC19-AF bar-type with 1920x720, PCAP touch, and AF treatment. Wide viewing angles and high brightness ensure sunlight-readable data-heavy HMI resolution. Contact CDTech for tailored industrial LCD PPI specs exported to Europe and Americas.

Why Choose Certified Manufacturers for FHD HMI Displays?

Choose certified manufacturers like CDTech for FHD HMI displays due to National High-tech Enterprise status, Shenzhen Software Enterprise recognition, and zero-defect quality via IATF16949. In-house production from a 10,000㎡ facility outperforms generic suppliers in pixel density LCD reliability for medical devices and vehicles.

Conclusion

For data-heavy HMI resolution, FHD's superior PPI delivers unmatched legibility over WVGA, minimizing errors in industrial/automotive apps. Partner with CDTech for certified, custom zero-defect FHD TFT LCDs featuring in-house OCA bonding, high brightness up to 1000 nits, and wide temperatures like -30°C to +85°C for mission-critical performance.

FAQs

What is the PPI calculation formula for LCD displays?

PPI = √(width² + height²) / diagonal; e.g., FHD on 10.1" = 218 PPI. Use online LCD PPI calculator for quick checks.

Does FHD always beat WVGA in HMI legibility?

Yes for data-heavy apps; FHD's 2x pixel density LCD ensures crisp small text/graphics on 10-12" screens.

What is a good PPI for industrial LCDs?

150+ PPI recommended; CDTech's FHD panels hit 200+ for industrial LCD PPI in harsh environments.

Can CDTech customize FHD HMI displays?

Yes, with OCA bonding, high-brightness options up to 1000 nits, and certifications for automotive/medical applications.

How does pixel density affect automotive displays?

Higher PPI like FHD reduces glare-induced blur, vital for automotive display pixel density in vehicles with wide temps -30°C~+85°C.
