Optical bonding (OCA lamination) and tape bonding are two assembly methods for LCD touch modules, each suited to different applications and budgets. Optical bonding eliminates air gaps between the LCD and touchscreen using optical-grade adhesive, delivering superior durability, sunlight readability, and vibration resistance—ideal for automotive and industrial environments. Tape bonding uses mechanical adhesive strips to bond layers, offering lower upfront costs but sacrificing performance in harsh conditions. Choosing between them depends on your application's environmental demands, durability requirements, and budget constraints.
Check: How Does Custom PCAP Touch Integration Add Value to TFT LCD Displays?
Optical bonding uses optically clear adhesive (OCA) to laminate the touchscreen directly to the LCD, eliminating air gaps that cause reflections and glare. The process involves surface preparation, precise adhesive application, vacuum lamination, and UV or heat curing to match refractive indices, preserving display brightness and contrast. CDTech performs this in its 3,500㎡ thousand-level dust-free workshop for zero-defect results.
Tape bonding applies mechanical adhesive strips between the LCD and touch panel layers, creating micro-air gaps that reduce optical clarity. It suits prototypes and low-volume runs due to faster assembly and lower costs, ideal for indoor consumer devices. However, it risks delamination, moisture ingress, and glare in harsh environments like industrial or automotive settings.
Optical bonding excels in eliminating air gaps for better readability and durability, while tape bonding prioritizes speed and cost for less demanding uses. Key differences include sunlight performance, temperature stability, and long-term reliability, as shown below.
| Aspect | Optical Bonding (OCA) | Tape Bonding |
|---|---|---|
| Air Gaps | None – full optical lamination | Micro-gaps present (reflections, glare) |
| Sunlight Readability | Excellent (enhanced contrast) | Poor (air-gap interference) |
| Durability | High (vibration/thermal shock resistant) | Moderate (delamination risk in harsh conditions) |
| Temperature Range | Extreme (-30°C to +85°C stable) | Limited (humidity sensitivity) |
| Cost | Higher (precision equipment, materials) | Lower (faster assembly, less labor) |
| Production Time | 5–7 days (curing + QC) | 2–3 days |
| Ideal Applications | Automotive, industrial, medical devices | Prototypes, consumer electronics |
| CDTech Capability | ✓ In-house OCA with ISO9001/IATF16949 | ✓ Available for budget prototypes |
Optical bonding withstands extreme temperatures from -30°C to +85°C and vibration in automotive dashboards or factory HMIs, preventing delamination and ensuring sunlight readability up to 1000 nits. CDTech's IATF16949 and ISO13485 certifications support products like the S036BWS01EN 3.6" round vehicle LCD and S101HWX53EP-FC47-AG 10.1" touch display with OCA, upholding a zero-defect policy via 2024 automated equipment.
Opt for tape bonding in rapid prototyping or low-volume (10–50 units) indoor applications like smart home IoT devices, where cost savings and 2–3 day turnaround matter more than harsh-environment durability. It avoids high OCA setup costs for proof-of-concept builds but limits use in vibration-heavy or outdoor scenarios due to air gap vulnerabilities.
Check: Custom LCD Display
CDTech offers in-house OCA bonding in a 10,000㎡ factory with a 3,500㎡ dust-free workshop, supporting low MOQs from 10 units without NRE fees and 4-week prototypes. Quad certifications (ISO9001, ISO14001, ISO13485, IATF16949) ensure compliance, with examples like S121BWX05EP-FC10 12.1" industrial LCD with CTP and OCA for reliable custom touch modules.
"In our experience with automotive clients, optical bonding transforms display performance in high-vibration, wide-temperature environments like -30°C to +85°C. For a recent 12.3" vehicle project using S123BWU11EP, OCA eliminated reflections at 950 nits, passing rigorous shock tests. Tape suits early prototypes, but OCA delivers the ROI for production—our zero-defect process and glass-cutting patent (2017) make it seamless." – CDTech R&D Lead, 10+ years in TFT LCD.

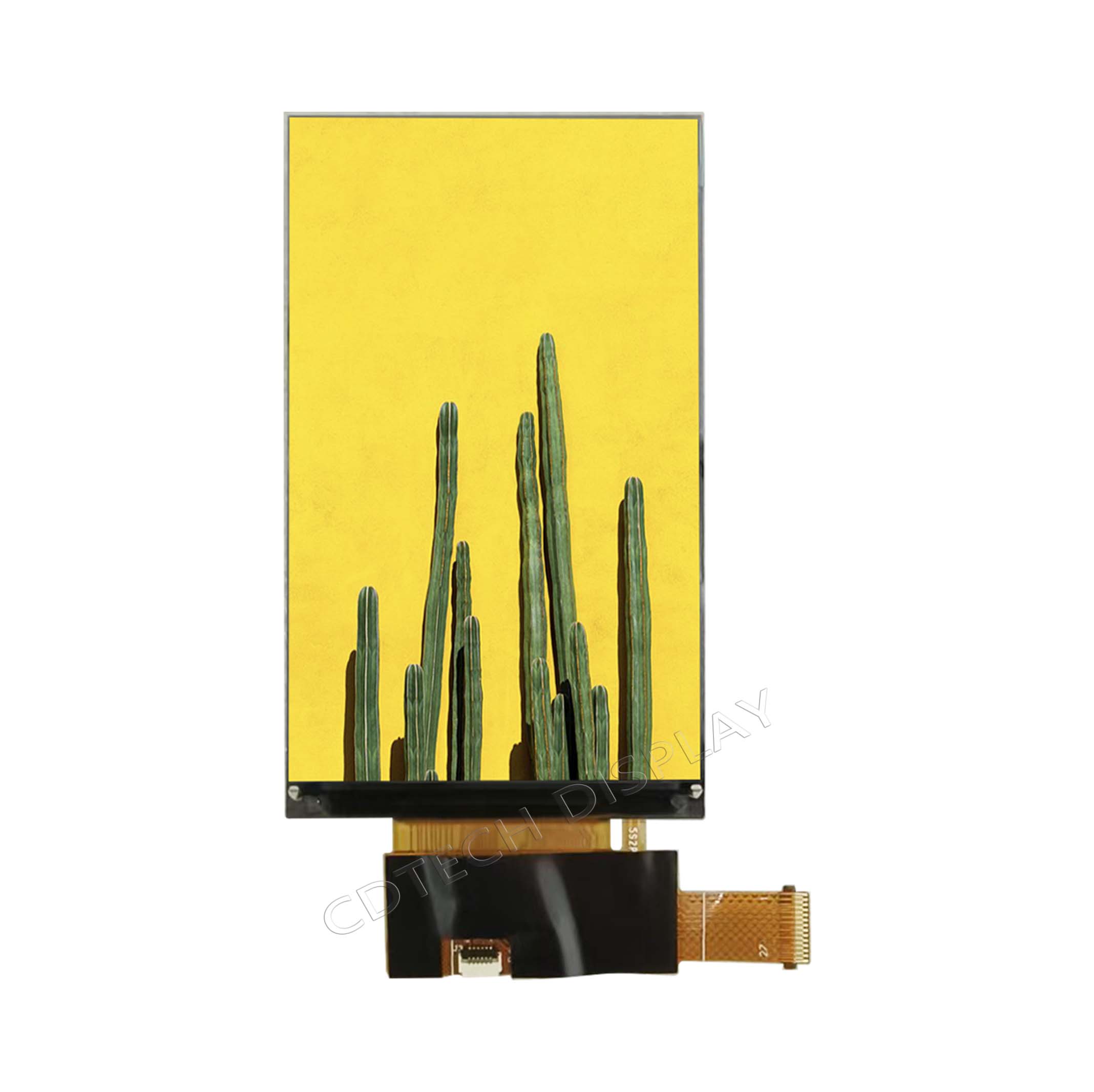

Optical bonding raises upfront costs due to precision materials and 5–7 day curing but lowers TCO over 5 years in automotive deployments by avoiding failures. Tape bonding cuts initial expenses for volumes under $50K but risks rework in harsh conditions. CDTech's in-house OCA and volume discounts amortize costs; for $100K+ projects, OCA's durability proves superior.
Assess environment (vibration/humidity?), readability needs, lifespan (prototype vs. 5+ years), and budget. Use OCA for automotive like S128HWU01HP-FC01 12.8" PCAP bonding or industrial HMIs; tape for consumer prototypes. Contact CDTech for free consultation—request a quote tailored to your specs via sales@cdtech-lcd.com or +86 0755-23032202.
Optical bonding and tape bonding balance cost, durability, and performance for custom touch modules. Tape bonding fits budget prototypes and low-risk consumer apps, while optical bonding ensures reliability in automotive, industrial, and medical uses with -30°C to +85°C stability and sunlight readability. CDTech's 13+ years, quad certifications, in-house OCA since 2020, and low-MOQ customs eliminate trade-offs—get your free technical quote today.
Optical bonding uses optically clear adhesive (OCA) to eliminate air gaps entirely, while tape bonding uses mechanical adhesive strips that leave micro-air gaps. OCA delivers superior durability and sunlight readability; tape offers faster, cheaper prototyping.
Yes. Automotive environments demand resistance to extreme temperatures, vibration, and moisture. OCA bonding prevents delamination and maintains performance across -30°C to +85°C ranges—essential for vehicle dashboards and HMI systems. IATF16949-certified suppliers like CDTech ensure zero-defect reliability.
Tape bonding can work for consumer or indoor applications with mild conditions, but it's not recommended for long-term durability in harsh environments (industrial factories, vehicles, outdoor installations). Air gaps cause delamination, moisture ingress, and optical degradation over 2–3 years.
CDTech's in-house OCA lamination takes 5–7 days (including curing and QC). Custom orders start at 10 units with no NRE fees, completing full prototypes in 4 weeks from design inquiry—ideal for startups and OEM engineers.
ISO9001 (quality), ISO14001 (environmental), ISO13485 (medical devices), and IATF16949 (automotive) are critical. CDTech holds all four, ensuring compliance for automotive and medical touchscreen applications with zero-defect manufacturing standards.
