How Does Dead-Front Printing Make LCD Icons Invisible Until Backlit?

Dead-front printing uses specialized inks on LCD cover lenses to render custom icons invisible in the off-state, activating only when backlight illuminates them for premium HMI aesthetics. This technique eliminates glare, enhances sunlight readability, and integrates seamlessly with OCA optical bonding—ideal for automotive and industrial displays. CDTech delivers IATF16949-certified solutions with low MOQs from its 10,000㎡ factory.

Check: How Does Custom PCAP Touch Integration Add Value to TFT LCD Displays?

What Is Dead-Front Printing for LCD Displays?

Dead-front printing applies non-transmissive inks on LCD cover lenses to block ambient light, making custom icons and graphics invisible until the backlight activates them. This creates a sleek, uniform black appearance in the off-state, reducing distractions and enhancing focus in smart home and medical interfaces. CDTech's 3,500㎡ dust-free workshop enables precise printing on TFT LCD and touch screens for superior quality.

How Does Backlight Activation Reveal Invisible Icons?

Specialized inks in dead-front printing absorb or reflect ambient light, keeping icons hidden when off, but transmit backlight wavelengths to reveal them with high contrast when powered. This works on glass or PC lenses, ensuring sunlight-readable performance in environments from -30°C to +85°C. Off-state, the lens looks uniformly black; backlight on displays crisp icons, leveraging CDTech's expertise in high-brightness touch displays.

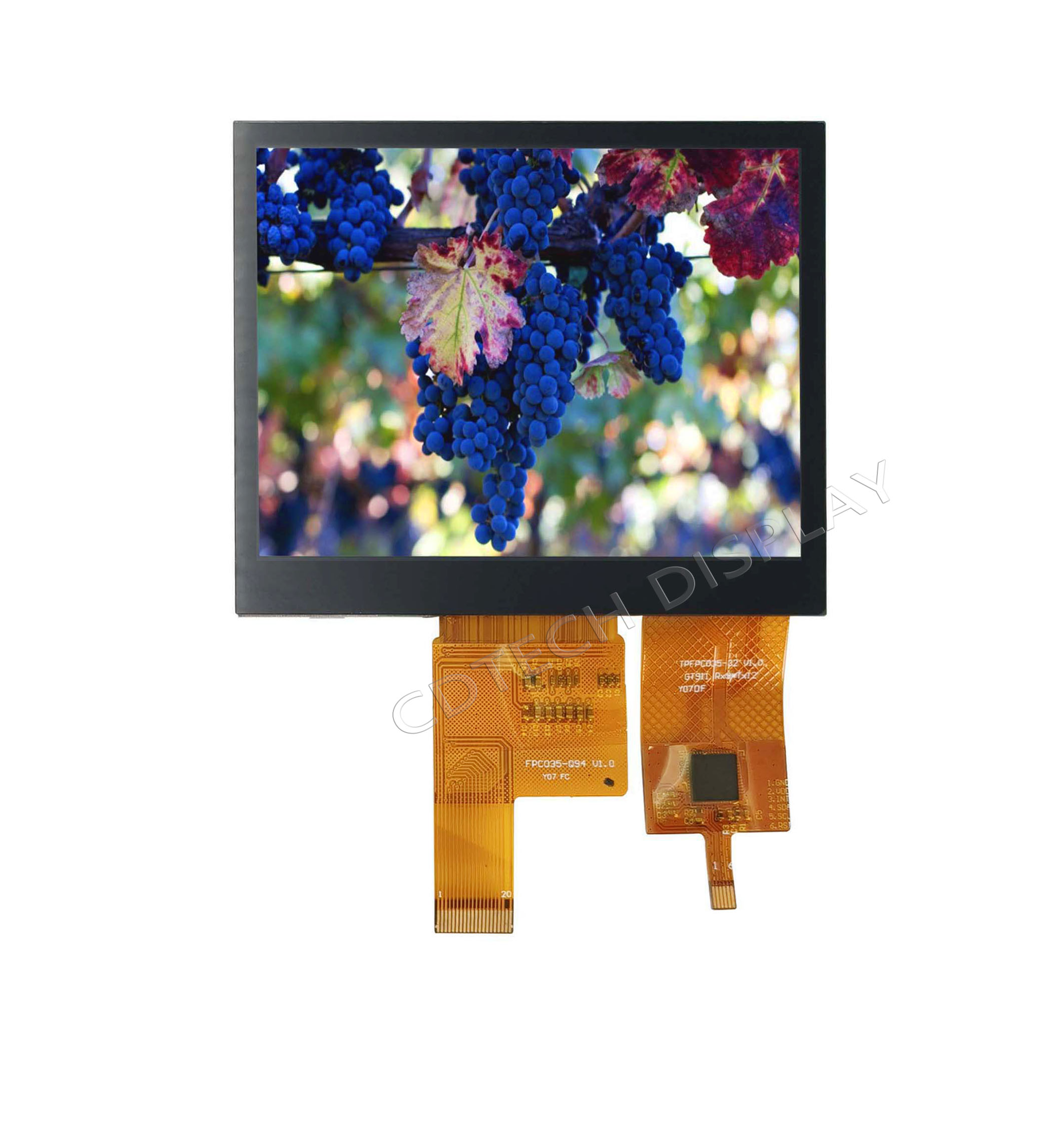

Why Integrate Dead-Front Printing with OCA Optical Bonding?

OCA optical bonding eliminates air gaps between the LCD panel, touch layer, and dead-front lens, providing zero parallax, enhanced durability, and shock resistance ideal for automotive applications. It boosts sunlight readability and anti-glare properties. CDTech's glass cutting patent supports seamless integration for rugged vehicle and industrial displays.

What Are Common Applications for Dead-Front LCD Displays?

Dead-front LCD displays suit automotive dashboards with hidden icons that activate on backlighting, industrial HMI panels for sunlight-readable controls, and medical devices for clean interfaces. CDTech's IATF16949-certified vehicle displays like the 10.1" S101HWX53EP-FC47-AG with OCA bonding excel here, alongside exports to Europe and Americas.

Check: Custom LCD Display

How Does CDTech Manufacture Custom Dead-Front Touch Icons?

CDTech manufactures custom dead-front icons by transferring designs to cover lenses, applying specialized inks, laminating with OCA, and rigorously testing in its 10,000㎡ factory under a zero-defect policy. This supports PCAP touch compatibility on products like the 12.1" S121BWX05EP-FC10 industrial LCD with CTP and OCA, ensuring reliability for BAR and vehicle lines.

CDTech Expert Views

"With over 13 years in TFT LCD and touch manufacturing, our automated POL/LCD/CTP lines in the 3,500㎡ thousand-level dust-free workshop enable 4-week prototyping for dead-front solutions. We handle low MOQs of 10-100 units without NRE, integrating OCA bonding and custom icons for automotive-grade displays like S101HWX53EP-FC47-AG. Our IATF16949 certification and glass cutting patent ensure zero-defect quality in harsh environments from -30°C to +85°C."

— Senior R&D Engineer, CDTech

Can Dead-Front Printing Meet Low-MOQ and Automotive Standards?

Yes, CDTech meets low-MOQ needs with 10-100 unit runs and no NRE, backed by National High-tech Enterprise status and quad ISO/IATF16949 certifications. Solutions tolerate -30°C~+85°C, high brightness up to 1000 nits, and integrate with LVDS interfaces for automotive displays like the 12.3" S123BWU11EP.

What Sets CDTech's Dead-Front Solutions Apart?

CDTech stands out with 13+ years of expertise, a 10,000㎡ factory including 3,500㎡ cleanroom, in-house touch production since 2020, and fully automatic equipment upgraded in 2024. Full customization for invisible-until-backlit icons with OCA, zero-defect policy, and global exports to Japan, Russia, and the Middle East differentiate its TFT LCD offerings.

FAQs

What inks are used in dead-front printing for LCD covers?

Specialized non-transmissive inks absorb ambient light while transmitting backlight, optimized by CDTech for OCA-bonded lenses in high-brightness displays up to 1000 nits.

What is the MOQ for custom dead-front touch screens at CDTech?

Low MOQs of 10-100 units with no NRE, enabled by 4-week prototyping on in-house automated lines for industrial and vehicle applications.

Is dead-front printing suitable for automotive displays?

Yes, CDTech's IATF16949-certified options with -30°C~+85°C range, 850-1000 nits brightness, and OCA bonding like S101HWX53EP-FC47-AG suit premium dashboards.

How does OCA bonding enhance dead-front LCD performance?

OCA removes air gaps for zero parallax, superior durability against shock/vibration, and improved sunlight readability in automotive and industrial settings.

Can CDTech provide samples for dead-front icons testing?

Yes, contact sales@cdtech-lcd.com for prototypes; CDTech's 8-step custom process from inquiry to production supports rapid testing and deployment.

Conclusion

Dead-front printing from CDTech revolutionizes LCD touch displays by making icons invisible until backlit, offering certified, low-MOQ solutions for automotive and industrial excellence. With OCA integration, wide temperature tolerance, and zero-defect quality, elevate your HMI designs today. Explore custom LCD development at cdtech-lcd.com or email sales@cdtech-lcd.com.
