Rugged haptic touch screens enhance industrial and automotive HMIs by integrating vibration motors with PCAP touch panels and OCA-bonded TFT LCDs, providing tactile input confirmation in gloves-on or noisy environments. They ensure zero-defect reliability across wide temperatures (-30°C~+85°C), meet IATF16949 standards, and support custom prototypes for seamless vibration feedback in harsh conditions.
Check: How Does Custom PCAP Touch Integration Add Value to TFT LCD Displays?
Rugged haptic touch screens are durable TFT LCD modules that combine projected capacitive (PCAP) touch with linear resonant actuators (LRAs) or eccentric rotating mass (ERM) vibration motors for tactile feedback. They deliver vibration to confirm inputs without visual reliance, ideal for industrial control panels and vehicle dashboards in vibration-heavy settings. CDTech's in-house OCA optical bonding ensures glare-free integration on IPS panels like the S101HWX53EP-FC47-AG, which operates from -30°C~+80°C with 850 nits brightness.
Vibration feedback addresses glove use, low visibility, and auditory noise in factories or vehicles that reduce touch accuracy. Haptics provide instant confirmation for safer machinery control in industrial HMIs and driver inputs on automotive dashboards. CDTech's 13+ years of experience and zero-defect policy enable embedding haptics in wide-temp displays (-30°C~+85°C) using LVDS or RGB interfaces without reliability loss.
Haptic feedback integrates by bonding PCAP layers to TFT LCDs via OCA optical bonding, adding haptic drivers and actuators beneath, then calibrating via embedded controllers for precise patterns. This works with LVDS, RGB, or MIPI interfaces and custom sizes enabled by CDTech's 2017 glass-cutting patent for low-MOQ production (10-100 units). Compatibility spans industrial and vehicle products like the 10.1" S101HWX53EP-FC47-AG.
| Actuator Type | Response Time | Power Draw | Durability in Rugged Temps | CDTech-Recommended Use Cases |
|---|---|---|---|---|
| ERM | 50-100ms | Medium | Good (-30°C~+85°C) | Cost-effective industrial HMIs |
| LRA | 10-30ms | Low | Excellent wide-temp | Automotive dashboards |
| Piezoelectric | <5ms | Very Low | Superior vibration resistance | High-precision vehicle controls |
Rugged haptic screens suit automotive HMIs due to IATF16949 certification ensuring vibration resistance and safety, with subtle "click" feedback reducing driver distraction. CDTech's bar-type S123BWU09NP-FC19-AF (12.3", 1920×720, OCA bonding + AF treatment, -20°C~+70°C) exemplifies this, exported to Europe and Americas from their 10,000㎡ factory with 3,500㎡ dust-free workshop.
"Our ISO13485-certified process allows seamless OCA bonding of haptic screens for medical and industrial applications, delivering prototypes within 24 hours. In a recent vehicle instrumentation case study, we integrated PCAP touch with LRA haptics on a 10.1" IPS panel like S101HWX53EP-FC47-AG, achieving glove-compatible feedback during -30°C tests while maintaining 850 nits brightness and LVDS interface stability."
— CDTech R&D Engineer, Specialist in Touch Integration
Explore CDTech's custom LCD development guide or contact sales@cdtech-lcd.com for haptic prototypes.
Yes, CDTech's ISO9001, ISO14001, ISO13485, and IATF16949 certifications support rugged haptic displays for medical devices, smart home, and instrumentation with shock/vibration resistance. Wide-temp IPS panels like the 7.0" S070BWS48ED (1000 nits, -20°C~+70°C) and in-house touch production fill gaps left by generic suppliers, offering fully customized OCA-bonded solutions.
Check: Custom LCD Display
Rugged haptic screens outperform standards in feedback reliability, glove compatibility, and harsh-temp operation, though with slightly higher integration costs offset by customization flexibility.
| Feature | Rugged Haptic (CDTech) | Standard Touch |
|---|---|---|
| Feedback Reliability | Vibration confirms inputs in noise/gloves | Visual/auditory only |
| Temp Range | -30°C~+85°C (e.g., S036BWS01EN) | 0°C~+60°C typical |
| Glove Compatibility | Up to 5mm with PCAP | Limited |
| Integration Cost | Moderate, low-MOQ custom | Lower, off-the-shelf |
| Zero-Defect Metrics | CDTech policy + quad certs | Variable |

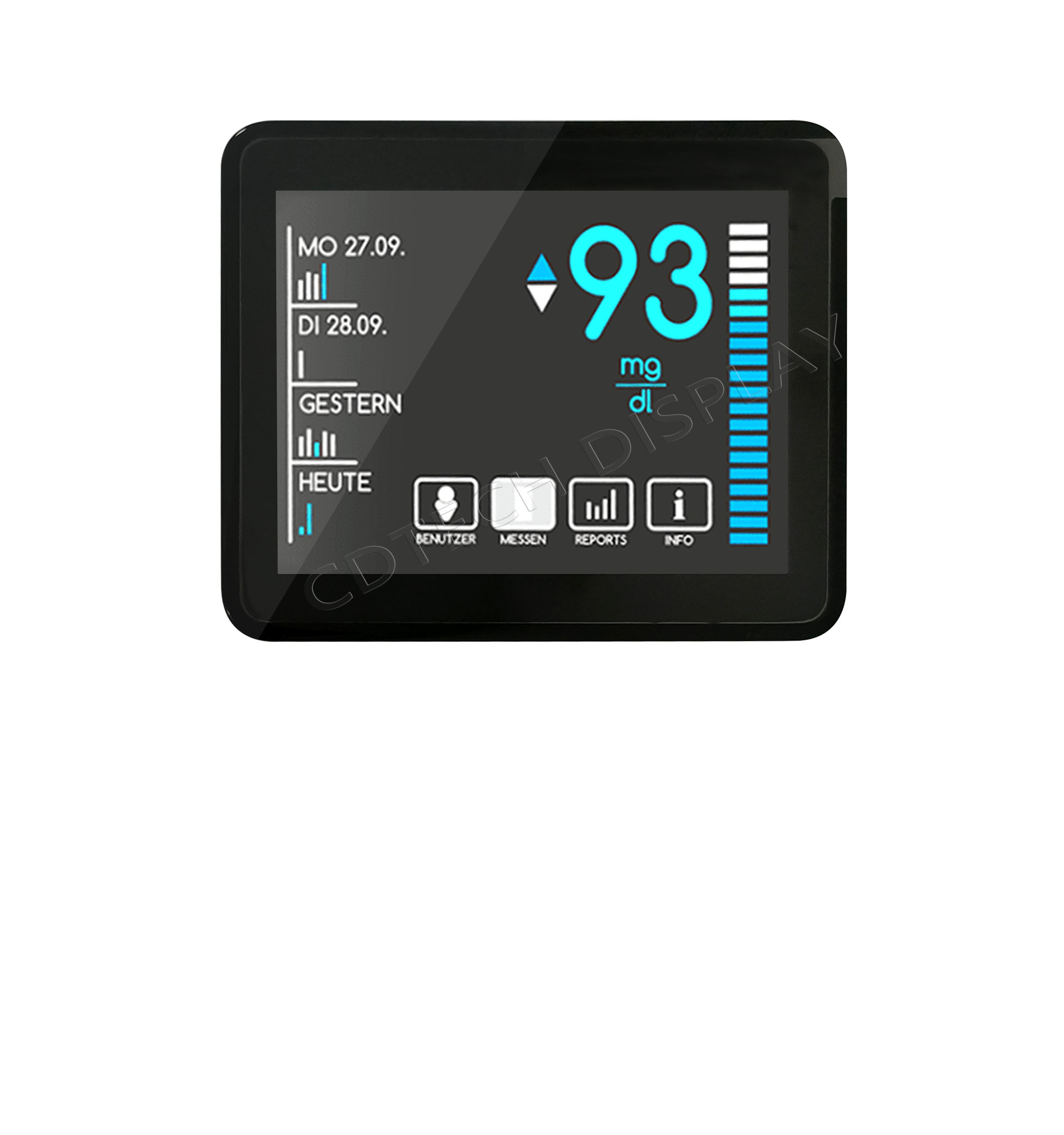

Source custom haptic HMI panels by specifying size, interface, and haptic type, then leverage CDTech's Shenzhen facility for low-MOQ prototypes with 24-hour response. Benefits include exports to Japan, Europe, and Russia, plus direct links to industrial LCDs like the 12.1" S121BWX05EP-FC10 (OCA + CTP, 800 nits). Contact via phone (+86 0755-23032202) or WhatsApp (+8613556818296) for quotes.
CDTech leads in rugged haptic touch screens with 13+ years of expertise, quad certifications, and in-house OCA/PCAP capabilities for zero-defect vibration feedback in industrial and automotive HMIs. Elevate your HMIs with custom prototypes—contact sales@cdtech-lcd.com for tactile LCD solutions that confirm every input reliably across extreme conditions.
What is the typical lead time for custom rugged haptic touch screens?
4 weeks for prototypes via CDTech's streamlined process, supporting low-MOQ for industrial and automotive needs.
Do haptic touch LCDs work with gloves in industrial settings?
Yes, PCAP combined with vibration ensures reliable input confirmation; CDTech validates for glove thickness up to 5mm in harsh environments.
Are CDTech's haptic displays certified for automotive use?
Fully IATF16949-certified, featuring wide-temp ranges (-30°C~+85°C) and zero-defect quality for vehicle HMIs.
What interfaces support haptic feedback integration?
LVDS, RGB, and MIPI, fully customizable for seamless addition to existing HMI panels like CDTech's vehicle series.
How does OCA bonding improve rugged haptic screens?
It eliminates air gaps for enhanced durability, reduced reflections, and sealed protection of haptic components in demanding conditions.
