Part No. S050HWV102ES
InquireThe demand for vehicle LCD displays increases every year. Monitors are very popular in applications such as instrument cluster, navigation, multi-functional monitors, and rear set entertainment.
sunlight readable
High thermal stability
High Brightness
Gloves touch
Waterproof touch
Anti-Vibration
Anti-Shock
High thermal stability
lonlevity
Anti-Shattering
General Features
| Size | 5.0 inch TFT Display | Resolution | 800(RGB)x480 Dots |
| LCD Interface | LVDS | FPC PINs | 40pins |
| Display Mode | Normally Black | Viewing Direction | IPS |
| Pixel pitch | 0.135*0.135 | Luminance | 1000 nits |

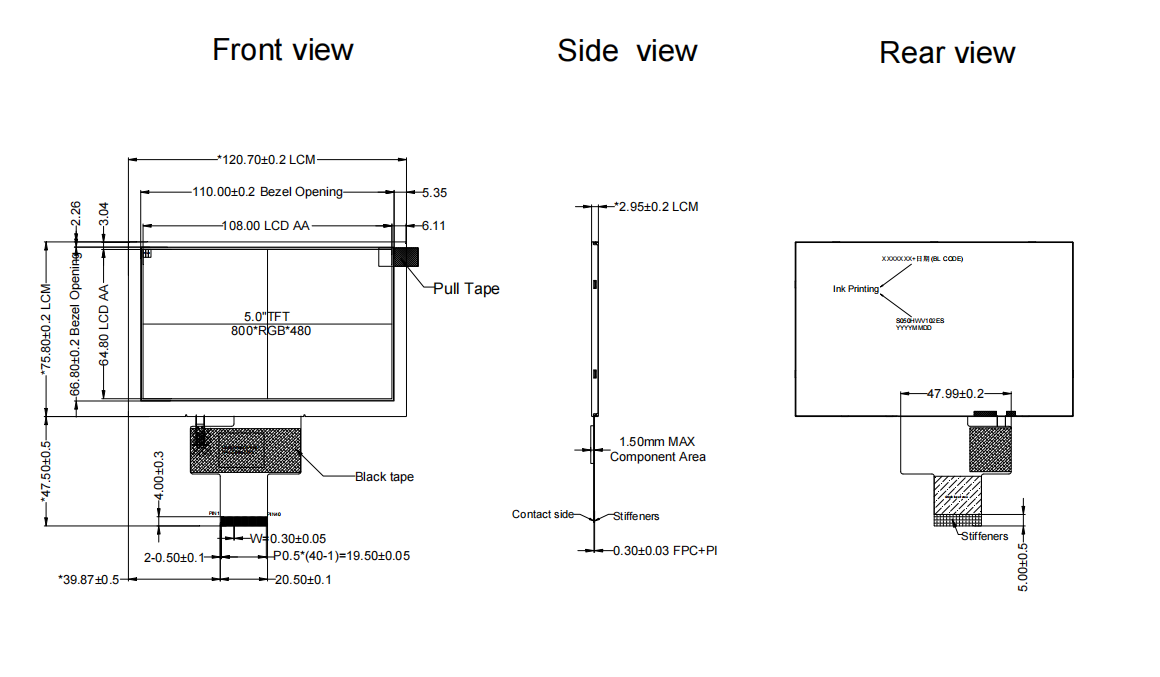

| LCM (W x H x D) (mm) | 120.7*75.80*2.95 | Active Area(mm) | 108 x 64.80 |
| Operation Temperature | -20℃ ~ +70℃ | Storage Temperature | -30℃ ~ +80℃ |
The demand for vehicle LCD displays increases every year. Monitors are very popular in applications such as instrument cluster, navigation, multi-functional monitors, and rear set entertainment.
CDTech will continue to invest and innovate to drive quality improvement, and strive to become a global leading and professional display manufacturer!just contact us.
