5.0inch 800x480 Color TFT LCD Screen support RGB interface

Part No. S050BWV113ND

Inquire
Download Datasheet

Product Features

The demand for vehicle LCD displays increases every year. Monitors are very popular in applications such as instrument cluster, navigation, multi-functional monitors, and rear set entertainment.

sunlight readable
High thermal stability
High Brightness
Gloves touch
Waterproof  touch
Anti-Vibration
Anti-Shock
High thermal stability
lonlevity
Anti-Shattering

Specifications

General Features

Size5.0 inch TFT Display Resolution800(RGB)x480 Dots
LCD Interface RGB FPC PINs40pins
Display Mode
Normally Black
Viewing Direction
Free
Pixel pitch0.135*0.135Luminance 300 nits
LCM (W x H x D) (mm)120.7*75.80*2.95Active Area(mm)108 x 64.80
Operation Temperature -20 ~ +70Storage Temperature -30 ~ +80

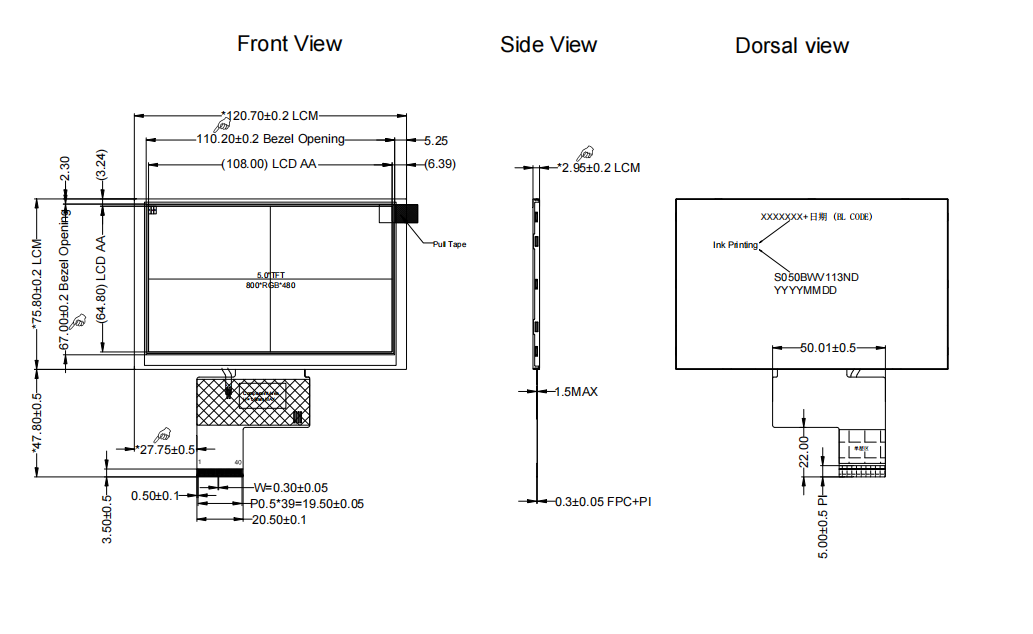

Product Details& Drawing



Actual Product Applications

The demand for vehicle LCD displays increases every year. Monitors are very popular in applications such as instrument cluster, navigation, multi-functional monitors, and rear set entertainment.
